Grid view with hover
What is the Grid view with hover section?

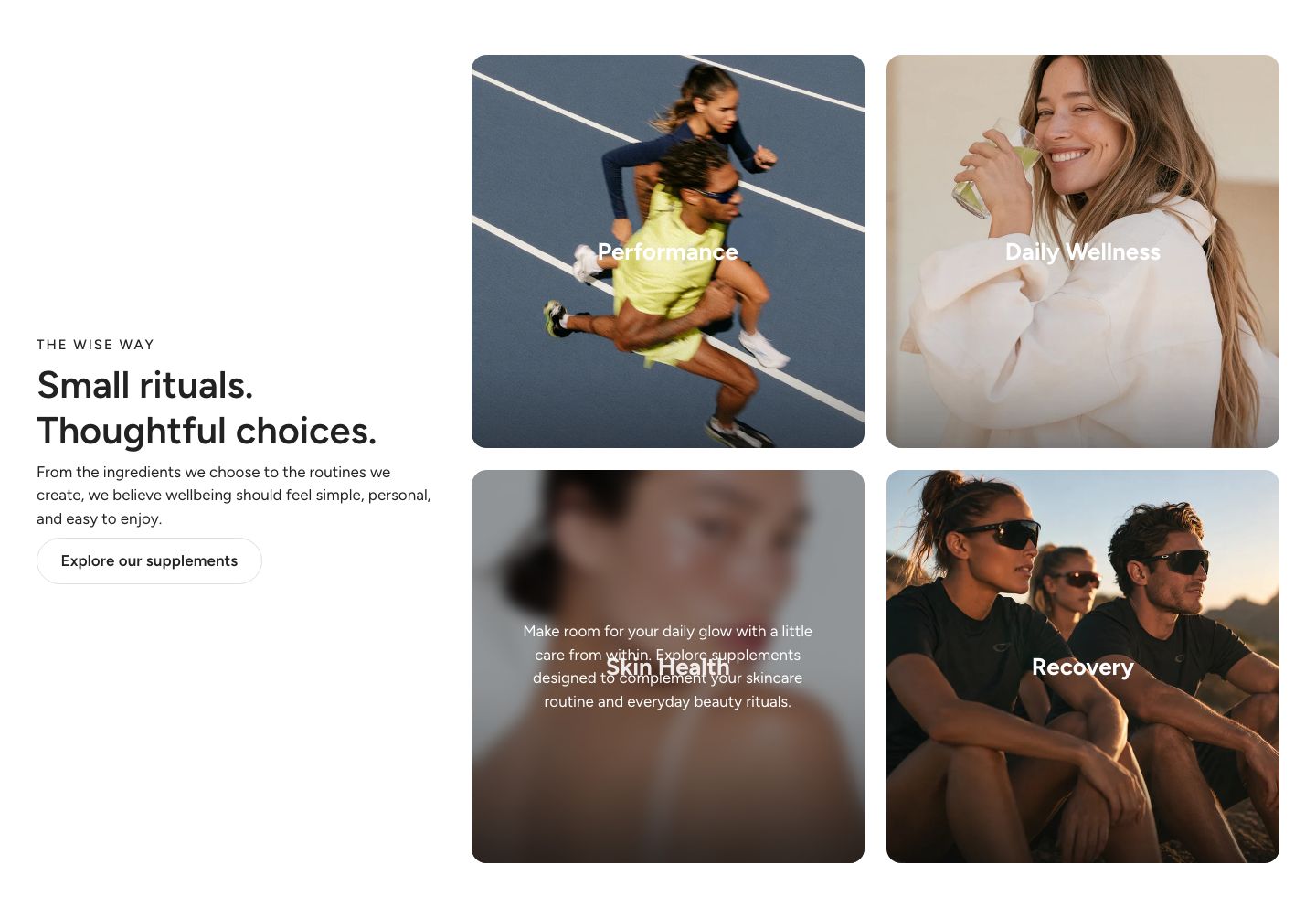

The Grid view with hover section places a column of text next to a grid of image or video tiles. When a shopper moves the mouse over a tile, it changes: a second image fades in, a color layer covers the image and different text appears. Use it to present categories, collections or services with a short teaser on the tile and more detail on hover.
You will find it under Storytelling in the Add section menu. It starts with a text column (subheading, heading, text and button) and four tiles. Each tile shows a heading, and its hover state shows a text.
This section is one of five grid sections with the same tile layout. Here, the tile changes on mouse hover and the section has a text column beside the grid instead of a heading above it. Grid view has plain tiles that can link to a page, Grid view with drawer opens a side drawer, Grid view with modal opens a centered pop-up, and Grid view with reveal turns the card over on click.
Section structure
When you expand the section in the theme editor sidebar, you will see two fixed blocks:
- Text column: The text next to the grid. It contains a subheading, a heading, a text and a button by default. If you remove all its blocks, the column is hidden and the grid takes the full width.
- Grid: The grid itself. It controls the layout, and the tiles (Tile blocks) go inside it.
Each Tile has its own fixed Hover content block, which sets what the tile shows on hover.
See How sections and blocks work for more about fixed blocks and theme blocks.
Section settings
- Make section full width: Enable this setting to make the section span the full width of the screen.
Desktop version
- Text column width: How much of the row the text column takes up (20 to 70%).
- Text column position: Show the text column on the left or the right of the grid.
- Gap to grid: Space between the text column and the grid (0 to 120 px).
Mobile version
On mobile, the text column and the grid are stacked.
- Order: Show the text first or the grid first (options: Text first, Grid first).
- Gap to grid: Space between the text and the grid (0 to 80 px).
Colors
- Background color: Set the background color of the section.
- Background gradient: Set a background gradient. A gradient overrides the background color.
- Text color: Set the text color for the whole section.
Section spacing
- Distance top (desktop) and Distance bottom (desktop): Space above and below the section on desktop (0 to 100 px).
- Show custom mobile spacing: Enable this setting to use different spacing on mobile. When it is on, Distance top (mobile) and Distance bottom (mobile) appear.
Text column block
Click the Text column block to style the text next to the grid.
- Text color: Override the section text color for the text column.
Desktop version
- Text alignment: Align the text left, center or right.
- Text vertical position: Place the text at the top, center or bottom of the column, next to the grid.
Mobile version
- Text alignment: Align the text left, center or right on mobile.
You can add any theme block to the text column, such as Subheading, Heading, Text and Button.
Grid block
Click the Grid block to set up the layout of the tiles.
- Image ratio: The shape of every tile (options: Adapt to image, Portrait, Square, Landscape, Custom).
- Custom ratio width and Custom ratio height: Set your own ratio, for example 3 and 2 for a 3:2 tile (1 to 16). Shown only when Image ratio is Custom.
Desktop version
- Layout: Show the tiles as a grid or as a slider (options: Grid, Slider).
- Items per row: How many tiles fit in one row (2 to 6).
- Items alignment: Align the tiles of a row that is not full (options: Left, Center). Shown only for the Grid layout.
- Gap: Space between the tiles (0 to 24 px).
Mobile version
- Layout: Show the tiles as a grid or as a slider (options: Grid, Slider).
- Items per row: How many tiles fit in one row (1 to 2). Use a decimal such as 1.1 to let the next tile peek in from the side of a slider.
- Items alignment and Gap: The same as on desktop (gap 0 to 24 px).
Slider behavior
- Enable loop: Let the slider start again from the first tile after the last one. It works on mobile only and is shown only when the mobile layout is Slider.
This grid has no slider dots.
Tile block
Each Tile is one card in the grid. Click Add block under the Grid to add more tiles, and drag them to change the order.
- Link: Make the whole tile clickable. Pick a product, collection or page, or paste any URL.
- Open link as a new window: Open the link in a new browser tab. Shown only when a link is set.
Desktop version
- Media type: Show an image or a video (options: Image, Video).
- Image or Video: Upload the image, or select a video uploaded to Shopify.
- Text vertical position: Place the text at the top, center or bottom of the tile. Space between puts the first block at the top and the last block at the bottom.
- Text alignment: Align the text left, center or right.
Mobile version
- Show different media on mobile: Enable this setting to use a different image or video on mobile. When it is on, Media type, Image and Video appear for mobile.
- Text vertical position and Text alignment: Position and align the text on mobile.
Video behavior
These settings appear when the media type is set to Video.
- Autoplay: Start the video automatically, muted.
- Show default video controls: Show the browser's standard video controls.
- Custom play/pause button and Custom mute/unmute button: Show the theme's own buttons on top of the video. Available only when the default controls are off.
The default video controls do not respond on a tile with a Link, because a click opens the link. On a linked tile, use the custom play/pause and mute/unmute buttons instead.
Optimization
- Optimize loading if this is the first section on the page: Load the image right away instead of when it scrolls into view. Turn it on for tiles that are visible as soon as the page opens.
Colors
- Text color: Override the text color on this tile.
- Background color: A color layer over the image or video. Use a semi-transparent color to darken the media so the text is easier to read.
Text background
- Enable text background: Show a box behind the text.
- Text background color and Text background blur: The color of the box and how much the image behind it is blurred (0 to 40 px). The blur shows only when the color has some transparency.
Click Add block under a Tile to add the text shown on the tile before hover. You can use any theme block, such as Heading, Text or Button.
Hover content block
Every tile has a fixed Hover content block. It sets what the tile looks like when the mouse is over it, or when a keyboard user moves to the tile's link. While the hover state shows, the blocks inside Hover content replace the tile's own blocks.
- Second image: An image that fades in over the tile's image on hover.
- Overlay color: A color that covers the image in the hover state. Use the opacity slider in the color picker to choose how much of the image shows through. Leave it empty to keep the tile's own Background color.
- Image blur: Blur the image in the hover state (0 to 20 px).
Click Add block under Hover content to add the text shown on hover, for example a Text block and a Button.
The hover state works on desktop with a mouse only. On touch screens and on screens narrower than 900 px, the hover content is not shown and each tile keeps its own blocks, so put the most important information on the tile itself.

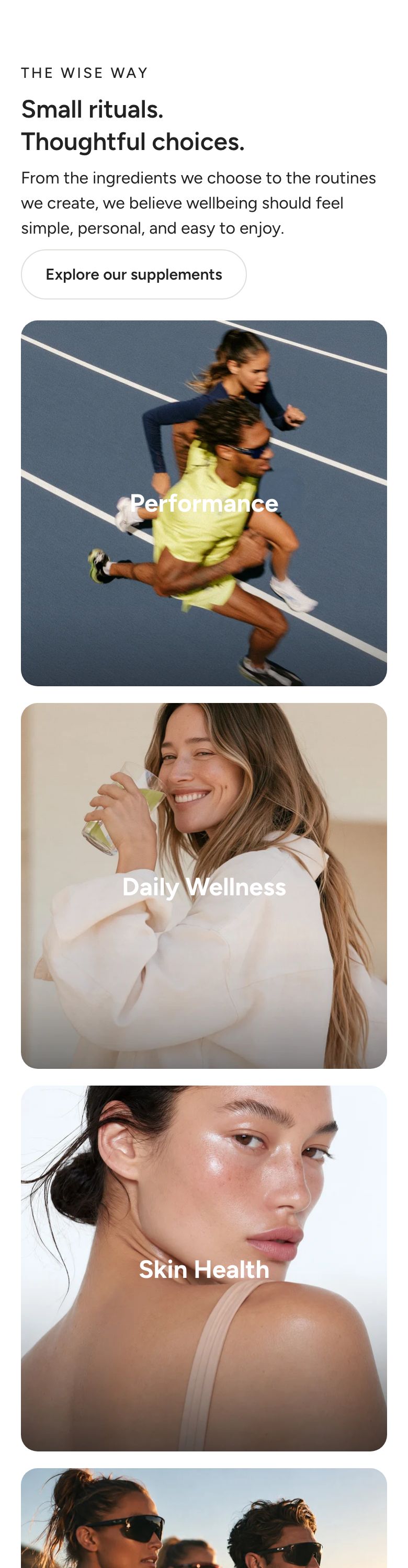

Mobile view example
